Section 132.3
Optimized Idle

See Figure "Optimized Idle System " for the Optimized Idle overall system schematic.‪

Click to see this graphic in a separate window

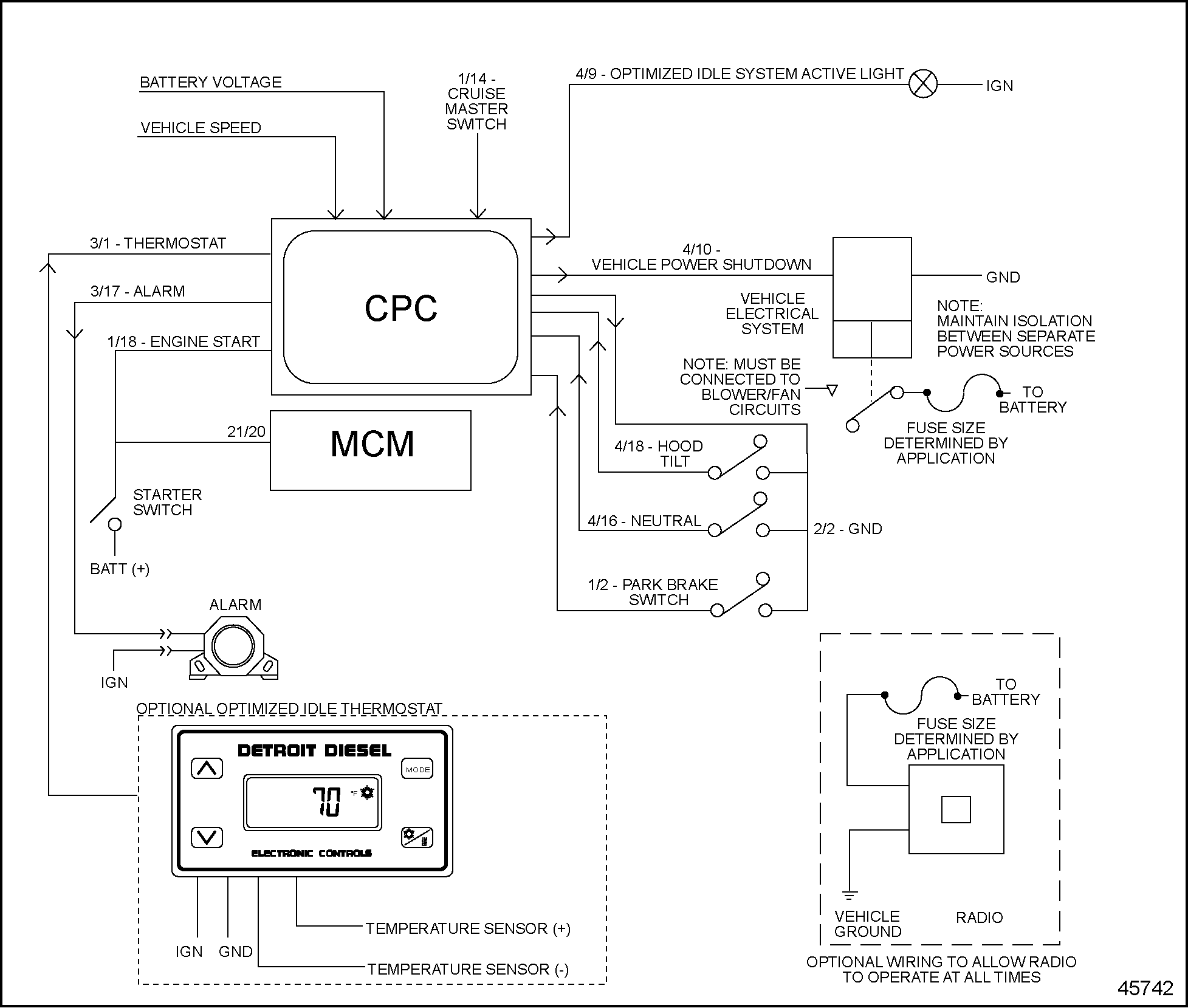

Figure 1. Optimized Idle System

EPA07 Series 60 DDEC VI Troubleshooting Guide - 6SE567
Generated on 10-13-2008
